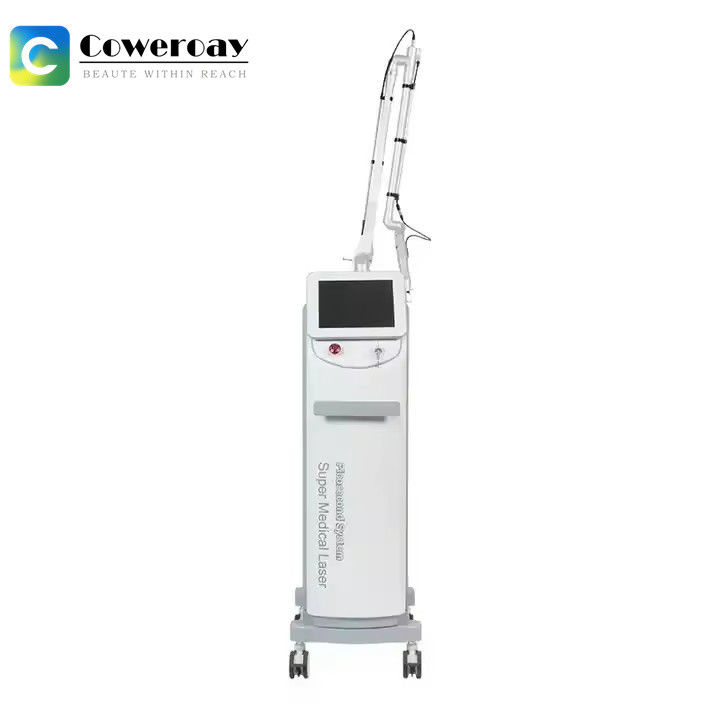

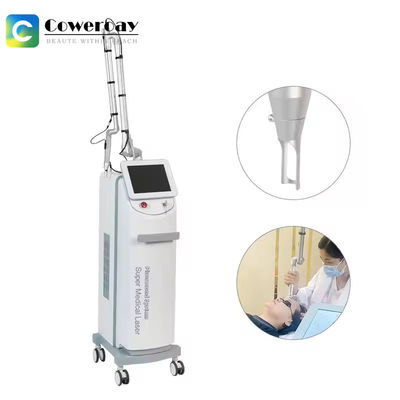

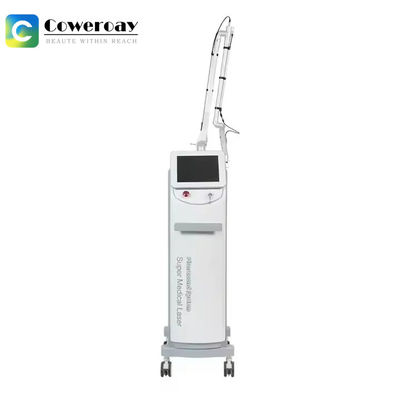

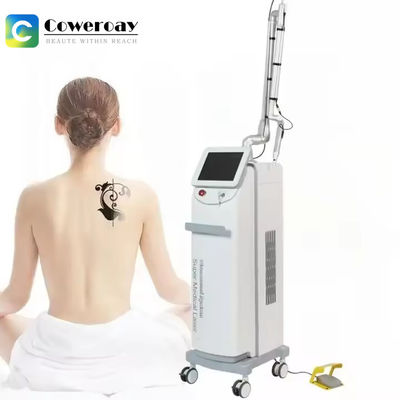

Picosecond Tattoo Removal Machine 1064nm 755nm 532nm Pigmentation Removal Equipment

Picosecond Tattoo Removal Machine 1064nm 755nm 532nm Pigmentation Removal Equipment

Brand Name: COWEROAY
Model Number: PL58
MOQ: 1Piece
Price: US$3499~3299/Piece
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets / month
Detail Information
Place of Origin:
Guangzhou,china
Certification:
ISO CE
Product Name:
Picosecond Tattoo Removal Machine
Laser Type:
Nd: Yag Laser
Cooling System:
Semiconductor, Water Cooling
Picolaser Wavelength:
1064nm, 755nm, 532nm
Diode Laser Spot Size:
10mm*12mm
Energy Density:
0-150J/cm2
Picolaser Spot Size:
2-10mm(adjustable)
Picolaser Fruence:
200-2000mj
Packaging Details:
Standard wooden box or aviation box with foam inside to protect from damage .
Supply Ability:
500 sets / month
Highlight:

Picosecond Tattoo Removal Machine 1064nm

,

Picosecond Tattoo Removal Machine 755nm

,

532nm Pigmentation Removal Equipment

Product Description

Picosecond Laser Tattoo / Freckles / Pigment Removal Machine For Skin Rejuvenation



Vertical Picosecond Laser 1064nm 755nm 532nm Tattoo /Freckles /Pigment Removal Machine For Skin Rejuvenation



Product Parameter



Input power 2000w
Screen 10.4 inch touch screen
Wavelength 1064/1024/755/532nm
Frequency 1-10Hz
Fruence 200-2000mj
Spot Size 2-10mm(adjustable)
Cooling system semiconductor, water cooling
Voltage 110V/220V
Package size 125cm*57cm*49cm
N. W./G. W. 43kg/65kg



Picosecond Tattoo Removal Machine 1064nm 755nm 532nm Pigmentation Removal Equipment 0

Theory


Using the light blasting effect, the high-intensity laser penetrate the epidermis and can reach the pigment clusters in the dermis layer. Because the energy has a short time of action and the energy is extremely high, the pigment clusters will quickly expand and explode after absorbing the high energy in an instant. After the particles are swallowed by macrophages, excreted, and the pigment gradually fades and disappears.



The picosecond laser with ultra-short pulse width can effectively produce photo-mechanical effects and break the pigment particles into small fragments.Compared with nano-scale Q-switched laser, picosecond laser only needs lower energy to achieve the effect.



It takes less number of treatment courses to achieve better treatment effect.



Picosecond Tattoo Removal Machine 1064nm 755nm 532nm Pigmentation Removal Equipment 1

Picosecond Tattoo Removal Machine 1064nm 755nm 532nm Pigmentation Removal Equipment 2

Picosecond Tattoo Removal Machine 1064nm 755nm 532nm Pigmentation Removal Equipment 3

Picosecond Tattoo Removal Machine 1064nm 755nm 532nm Pigmentation Removal Equipment 4

Picosecond Tattoo Removal Machine 1064nm 755nm 532nm Pigmentation Removal Equipment 5

Picosecond Tattoo Removal Machine 1064nm 755nm 532nm Pigmentation Removal Equipment 6



Application


(1) Diode Laser


Long-lasting hair removal, better than IPL and E-light; effectively remove hair on different parts of the body, such as face,
underarms, back, legs and bikini line, effectively removing hair of various depths.


Effectively remove hairs of different colors and textures, such as black, auburn and brown.


Permanent hair removal, suitable for a variety of skins.


Non-invasive treatment method, high safety. It is painless and non-invasive, and does not need a recovery period, and does not affect normal life and work.

(2) Pico Laser


Remove chloasma, freckles, age spots, brown mole spots, acne marks and other endogenous pigments, wash eyebrows, tattoos, moles, birthmarks, remove Ota moles, etc.



Picosecond Tattoo Removal Machine 1064nm 755nm 532nm Pigmentation Removal Equipment 7

Picosecond Tattoo Removal Machine 1064nm 755nm 532nm Pigmentation Removal Equipment 8

Picosecond Tattoo Removal Machine 1064nm 755nm 532nm Pigmentation Removal Equipment 9

Picosecond Tattoo Removal Machine 1064nm 755nm 532nm Pigmentation Removal Equipment 10








Picosecond Tattoo Removal Machine 1064nm 755nm 532nm Pigmentation Removal Equipment 11

Picosecond Tattoo Removal Machine 1064nm 755nm 532nm Pigmentation Removal Equipment 12

Picosecond Tattoo Removal Machine 1064nm 755nm 532nm Pigmentation Removal Equipment 13

Picosecond Tattoo Removal Machine 1064nm 755nm 532nm Pigmentation Removal Equipment 14

Picosecond Tattoo Removal Machine 1064nm 755nm 532nm Pigmentation Removal Equipment 15
