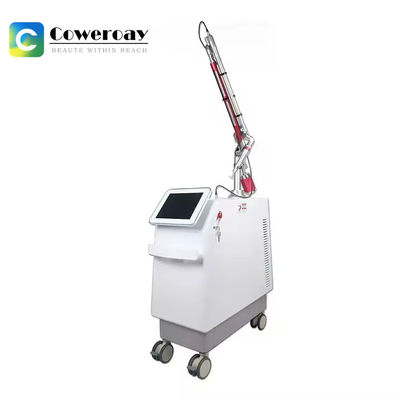

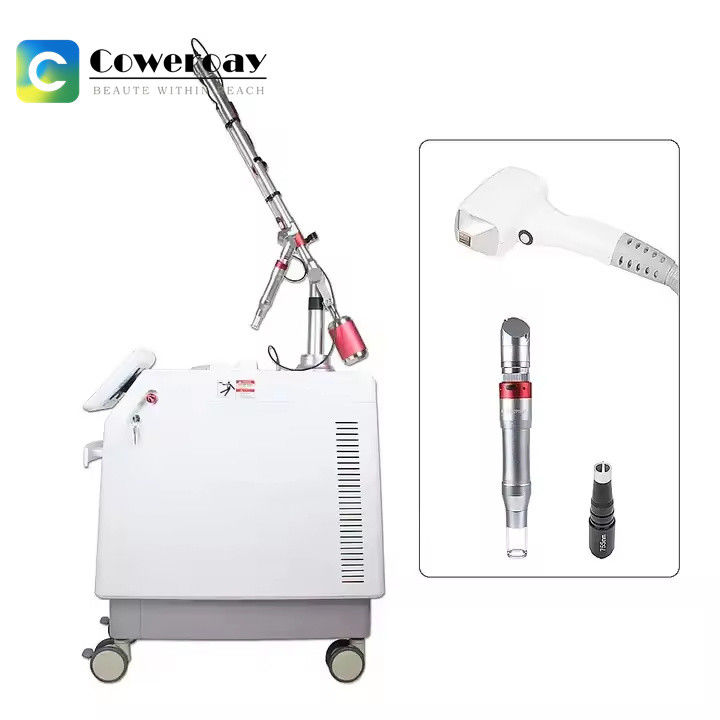

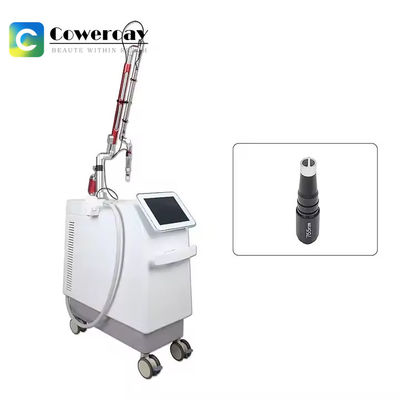

808nm Diode Nd Yag Laser Hair Removal Machine Laser Picosecond Tattoo Removal Machine

808nm Diode Nd Yag Laser Hair Removal Machine Laser Picosecond Tattoo Removal Machine

Brand Name: COWEROAY
Model Number: PL48
MOQ: 1Piece
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Sets/month
Detail Information
Place of Origin:
Guangzhou,china
Certification:
ISO CE
Product Name:
Picosecond Tattoo Removal Machine
Laser Type:
Nd: Yag Laser
Cooling System:
Semiconductor+ WaterCooling Gel
Power:
2000w
Pulse Frequency:
1-10HZ
Llaser Wavelength Of ND YAG:
1064nm,755nm,532nm
Laser Wavelength Of Diode Laser:
808nm
Energy Density Of Diode Laser:
0-150j/CM2
Energy Density Of ND YAG:
200-2000mj
Q-Switch:
Yes
Packaging Details:
Standard wooden box or aviation box with foam inside to protect from damage .
Supply Ability:
500 Sets/month
Highlight:

808nm Nd Yag Laser Hair Removal Machine

,

Diode Nd Yag Laser Hair Removal Machine

,

Laser Picosecond Tattoo Removal Machine

Product Description

808nm Diode Laser Hair Removal Nd Yag Laser Picosecond Tattoo Removal Machine

Professional Picosecond Nd Yag Laser Tattoo Removal Machine Big Spot Size 808nm Diode Laser Hair Removal Equipment

Product Parameter



Input Power 2000W
Screen 10.4 inch touch screen
Cooling System semiconductor, water cooling
Voltage 110V/220V
Diode Laser Wavelength 808nm
Pico Laser Wavelength 1064nm, 755nm, 532nm
Mode Single pulse and Contiuous pu
Frequency 1-10Hz
Pulse Width 10-200ms
Energy Density 0-150J/cm2
Temperature 0-40
Spot Size 10mm*12mm
Frequency 1-10Hz
Fruence 200-2000mj
Spot Size 2-10mm(adjustable)
Single package size 89X46X96 cm
Single gross weight 120.000 kg



working principle



(1)Diode Laser:


Semiconductor lasers are stacked with ultra-micro semiconductor laser chips. The basic treatment principle is biological effect. The 808nm laser emitted by this machine is easily absorbed by colored hair follicles without damaging the epidermal tissue. The energy emitted by the light is absorbed by hair and pigments in hair follicles. After being converted into heat, the temperature of the hair follicles is increased. When the temperature rises to a certain level, the hair follicles will be irreversibly damaged. After a period of time, the damaged hair follicles will be removed with the body's metabolism to achieve the purpose of permanent hair removal. Modern design, stable output, short exposure time, good effect of permanent hair removal, high safety.



(2)Pico Laser:


Using the light blasting effect, the high-intensity laser penetrate the epider- mis and can reach the pigment clusters in the dermis layer. Because the energy has a short time of action and the energy is extremely high, the pig- ment clusters will quickly expand and explode after absorbing the high energy in an instant. After the particles are swallowed by macrophages, ex- creted, and the pigment gradually fades and disappears. The picosecond laser with ultra-short pulse width can effectively produce photo-mechanical effects and break the pigment particles into small frag- ments.





808nm Diode Nd Yag Laser Hair Removal Machine Laser Picosecond Tattoo Removal Machine 0808nm Diode Nd Yag Laser Hair Removal Machine Laser Picosecond Tattoo Removal Machine 1

Advantage



1. Fast hair removal


2. Non-invasive and painless


3. Silent System


4. Intelligent constant temperature4°C



808nm Diode Nd Yag Laser Hair Removal Machine Laser Picosecond Tattoo Removal Machine 2

Application


(1) Diode Laser


Long-lasting hair removal, better than IPL and E-light; effectively remove hair on different parts of the body, such as face,underarms, back, legs and bikini line, effectively removing hair of various depths.Effectively remove hairs of different colors and textures, such as black, auburn and brown.Permanent hair removal, suitable for a variety of skins.Non-invasive treatment method, high safety. It is painless and non-invasive, and does not need a recovery period, and does not affect normal life and work.

(2) Pico Laser


Remove chloasma, freckles, age spots, brown mole spots, acne marks and other endogenous pigments, wash eyebrows, tattoos, moles, birthmarks, remove Ota moles, etc.

808nm Diode Nd Yag Laser Hair Removal Machine Laser Picosecond Tattoo Removal Machine 3808nm Diode Nd Yag Laser Hair Removal Machine Laser Picosecond Tattoo Removal Machine 4

808nm Diode Nd Yag Laser Hair Removal Machine Laser Picosecond Tattoo Removal Machine 5

808nm Diode Nd Yag Laser Hair Removal Machine Laser Picosecond Tattoo Removal Machine 6

808nm Diode Nd Yag Laser Hair Removal Machine Laser Picosecond Tattoo Removal Machine 7

808nm Diode Nd Yag Laser Hair Removal Machine Laser Picosecond Tattoo Removal Machine 8

808nm Diode Nd Yag Laser Hair Removal Machine Laser Picosecond Tattoo Removal Machine 9

808nm Diode Nd Yag Laser Hair Removal Machine Laser Picosecond Tattoo Removal Machine 10808nm Diode Nd Yag Laser Hair Removal Machine Laser Picosecond Tattoo Removal Machine 11808nm Diode Nd Yag Laser Hair Removal Machine Laser Picosecond Tattoo Removal Machine 12
