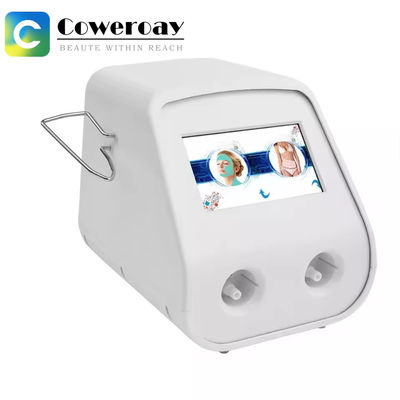

30W-200W RF Beauty Machine Scar Removal Tixel Thermal Skin Rejuvenation Machine

Brand Name:	COWEROAY
Model Number:	RF09
MOQ:	1Piece
Price:	US$1600~1899/Piece
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 Sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou,china

Certification:

ISO CE

Product Name:

Fractional RF Microneedle Machine

Technology:

Thermo-mechanical Action Technology( TMA )

Working Temperature:

400℃(±20℃)

Treatment Tip:

Sterile Titanium Tip( 9 X 9 )

Treatment Depth:

Depth Of Up To 250μ, Width Of Up To 500μ

Output Power:

30W-200W

Feature:

Wrinkle Remover, Skin Rejuvenation, Face Lift, Whitening, Firming

Target Area:

Body, Face, Eyes, Legs/Arms, Lips, Neck/Throat, Hands, Head, Nose, Breast, Other

Packaging Details:

Standard wooden box, aviation box with foam inside to protect from damage .

Supply Ability:

500 Sets/month

Highlight:

200W RF Beauty Machine

Skin Rejuvenation RF Radio Frequency Machine

Tixel Thermal Skin Rejuvenation Machine

Product Description

Tixel Conductive Thermal Scar Removal Tixel Thermal Skin Rejuvenation Machine

Tixel Conductive Thermal Titanium Tips Desktop One Handle Scar Removal Tixel Thermal Skin Rejuvenation Beauty Machine

Product Parameter

Product name	stretch marks removal device acne scar removal A skin tightening machine facial
Keywords	stretch marks removal machine
Advantage	Stretch mark, Acne Scarring,wrinkle remova
Lifetime of handle	50000 shots/handle
Handle	2 handle
Operating temperature	400C(±10C)
Input voltage	AC100V-240V
Output Power	30-200W
Fuse	10A

Titanium therapeutic head

TMA is a unique medical device that harnesses the force of nature to re-shape skin technology. Powered by our proprietary Thermo-Mechanical Action Technology (TMA), TMA combines heat and motion. Its medical grade in situ sterile titanium tip gently applies pure natural heat to the skin, safely moving forward for visible results. TMA is suitable for all skin types and for a wide variety of aesthetic and medical treatments.

Thermo-Mechanical Action Technology (TMA)

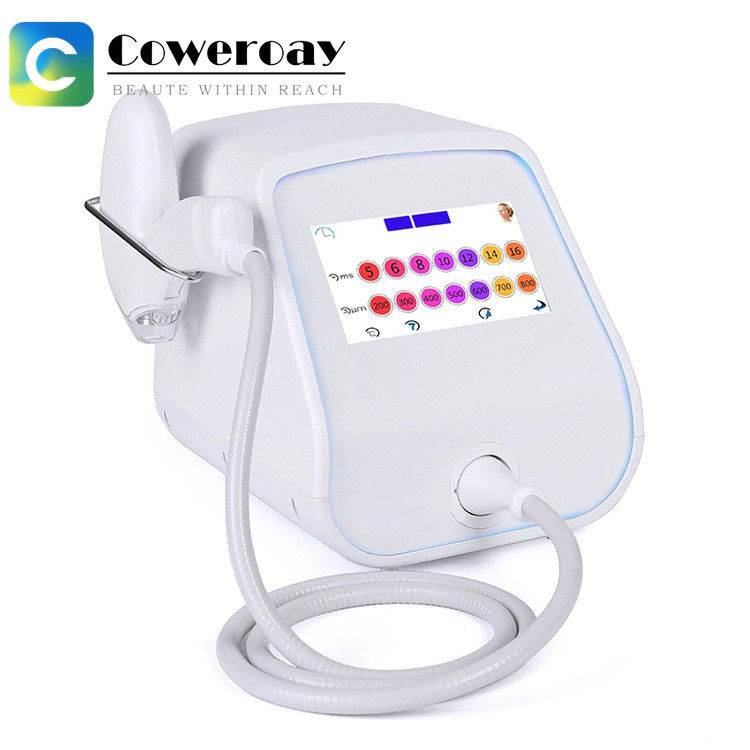

USER-FRIENDLY INTERFACE TMA has a graphic user interface with just two treatment parameters. It is simple to use, with a quick learning curve so that treatment can be easily and safely delegated.

MEDICAL-GRADE TITANIUM TIP A medical-grade titanium tip is located in the handpiece and is reusable and easy to clean. This in situ pre-heated tip is also sterile upon operation. As the tip moves forward and makes very brief contact with the skin, thermal energy is transferred. There is no emitted radiation, smoke, fumes or bleeding. Furthermore, goggles are not required as the system is eye safe.

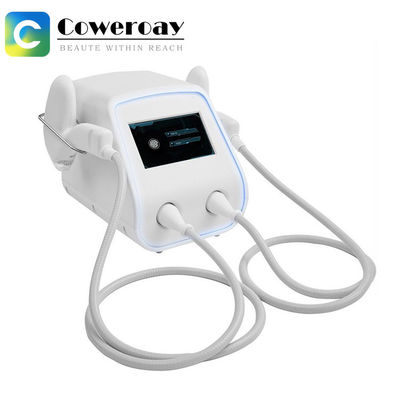

TWO LIGHT HANDPIECES Customize patient treatment precisely: TMA’s 2 handpieces – facial and periorbital – can be used for large (1 cm2) and small (0.3 cm2) treatment areas. The periorbital handpiece is ideal for around the eyes, on narrow treatment areas around the nose, on deep wrinkles on upper lips, and stretch marks.

ABOUT TMA THERMO-MECHANICAL ACTION TECHNOLOGY

TMA is a technology, that’s forward in thinking and in its action. It uniquely combines motion and heat with the forward movement of a medical-grade titanium tip. This proprietary non-laser fractional technology transfers thermal energy to skin very quickly and safely: energy is emitted through a matrix of tiny pyramid-shaped pins made of biocompatible materials covering a treatment area of 1cm². The pins are heated to a temperature of 400°C and are self-sterilized.

The tip consists of 81 tiny pyramids (9 x 9) which are heated to a temperature of 400°C . As the tip moves, it makes brief contact with the skin at the apex of the pyramids without protruding the skin. This creates a matrix of discrete nonablative hemispherical coagulation zones (depth of up to 250μ, width of up to 500μ).

THE THERMAL EFFECT

During treatment, the pins are introduced to the surface of the skin at a precisely-controlled speed and create brief contact with the skin lasting only a few milliseconds. This enables the thermal energy stored in the pins to be transferred to the skin. The thermal transfer results in an array of tiny non-ablative coagulation sites. Because the tiny tip pyramids hold a limited amount of energy, burns and tissue charring are prevented.

WHY IS THE PAIN RELATIVELY LOW?

The reason why pain is relatively low during treatment with TMA compared to the ablative CO2laser is primarily due to the transfer of a relatively lower amount of energy to the skin by TMA. This is made possible by utilization of a more efficient energy transfer method (conduction vs. radiation) and the longer pulse duration (e.g. 10ms vs. 1ms) of TMA as compared to the CO2 laser. The pain nociceptors in skin are located in the epidermis and dermis. These pain receptors are sensitive to the rate at which the temperature changes over time. For example, a CO2 laser generates heat quickly: CO2laser heating to 400°C takes about 200ns whereas the TMA heating effect is slower by at least 1 magnitude of order resulting in milder pain.

ENHANCED SKIN PERMEABILITY

Research shows that TMA creates superficial channels in the stratum corneum, allowing enhanced permeability to topically applied hydrophilic substances, that are applied after treatment. TMA’s intended use does not currently include tissue permeability enhanceme
