products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Diode Laser Hair Removal Machine
Created with Pixso.

Non Invasive 808nm Diode Laser Professional Laser Hair Removal Instrument

Non Invasive 808nm Diode Laser Professional Laser Hair Removal Instrument

Brand Name: COWEROAY
Model Number: 808A
MOQ: 1Piece
Price: $2,350.00 ~ $2,400.00
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Sets/mont
Detail Information
Place of Origin:
Guangzhou,china
Certification:
ISO CE
Product Name:
808nm Diode Laser Hair Removal Machine
Power Of Optical Maser:
600W
Cooling Of Optical Maser:
Heat Conduction Cooling
Wavelength:
808nm
Pulse Width:
30ms~300ms
Frequency:
1Hz~10Hz
Temperature:
5-28℃
Handle Speed:
2-3L/min
Packaging Details:
Standard wooden box or aviation box with foam inside to protect from damage .
Supply Ability:
500 Sets/mont
Highlight:

Professional Laser Hair Removal Instrument

,

808nm Diode Laser Hair Removal Instrument

,

Non Invasive Laser Hair Removal Instrument

Product Description

Manufacturer Non-invasive 808nm Diode Laser Professional Laser Hair Removal Instrument



Advantage



1. Using imported German chips, with strong energy and more uniform light output;


2. Precision TEC+sapphire constant temperature cooling, safe and comfortable treatment for freezing point hair loss;


3. Adopting high-tech heat conduction cooling mode, the handle has higher heat dissipation;


4. Switching power supply imported from Taiwan, with stable/continuous/uninterrupted voltage output;


5. CPC handle plug-in parts imported from the United States, with a rotary switch design for easy insertion and removal of handles;


6. Detachable screen, convenient for packaging, avoiding transportation damage;


7. Automatic detection system, simplified after-sales handling



Parameter



Power of optical maser 600W
Cooling of optical maser Heat conduction cooling
Laser type 808nm diode laser
Wavelength 808±10nm
Pulse width 30ms~300ms
Frequency 1Hz~10Hz
Maximum energy 100 J/ cm²
Spot size 15mm*13mm
Temperature 5-28℃
Handle speed 2-3L/min
Screen 15.6 inch
Water tank Internal water tank
Input power 220VAC / 50-60Hz(110VAC Optional)



Non Invasive 808nm Diode Laser Professional Laser Hair Removal Instrument 0



Non Invasive 808nm Diode Laser Professional Laser Hair Removal Instrument 1

Working principle



There is a lot of melanin contained in the hair and hair follicle that the diode laser machine is making use of a specific laser wavelength 808nm and have the melanin as the target then the laser is working on the melanin for only the melanin will absorb the 808 laser, after the absorbing the laser and the rise the temperature inside of the hair follicle will damage the hair follicle and the hair cell tissue which is the nurturing place of the hair .When the melanin absorb the laser and because of the photothermal effect can selectively damage the hair cells so to remove the hair permanently while at the same time it will not damage the normal tissue around the treated skin and what is the best is that it can have the effect of shrinking your pores as well as having you a smooth skin.



This 808nm laser can penetrate to the skin deep to its target tissue( hair papilla)with suitable and lasting time of energy to heat up the target tissue while the surrounding tissue of treatment area will be not affected cause when the right amount of energy works on the target tissue which can heat up and damage the targeted tissue but the normal skin will have no influence at all .With some protection on the skin and the targeted tissue will be damaged however the epidermal skin will be in tact so as to guarantee a safe treatment



Non Invasive 808nm Diode Laser Professional Laser Hair Removal Instrument 2


Parameter for reference

The actual parameter should be adjusted accordingly to the customers.

Treatment part

Energy/ J/cm²

(strong&black hair)

Energy/ J/cm²

(fine&shallow color hair)

Frequency/ Hz The number of lights emitted
Lips 20~35 25~45 1~3 150~200
Armpit hair 20~35 25~45 1~3 200~300
Limb hair 25~30 25~45 3~5 800~1500
Bikini hair 15~25 20~30 1~3 300~400
Hairline 25~30 25~35 1~3 300~400
Mustache 20~35 25~40 1~3 200~300
Back hair 20~35 25~40 3~5 500~600
Chest hair 20~35 25~40 3~5 500~600


Non Invasive 808nm Diode Laser Professional Laser Hair Removal Instrument 3
Non Invasive 808nm Diode Laser Professional Laser Hair Removal Instrument 4
Non Invasive 808nm Diode Laser Professional Laser Hair Removal Instrument 5

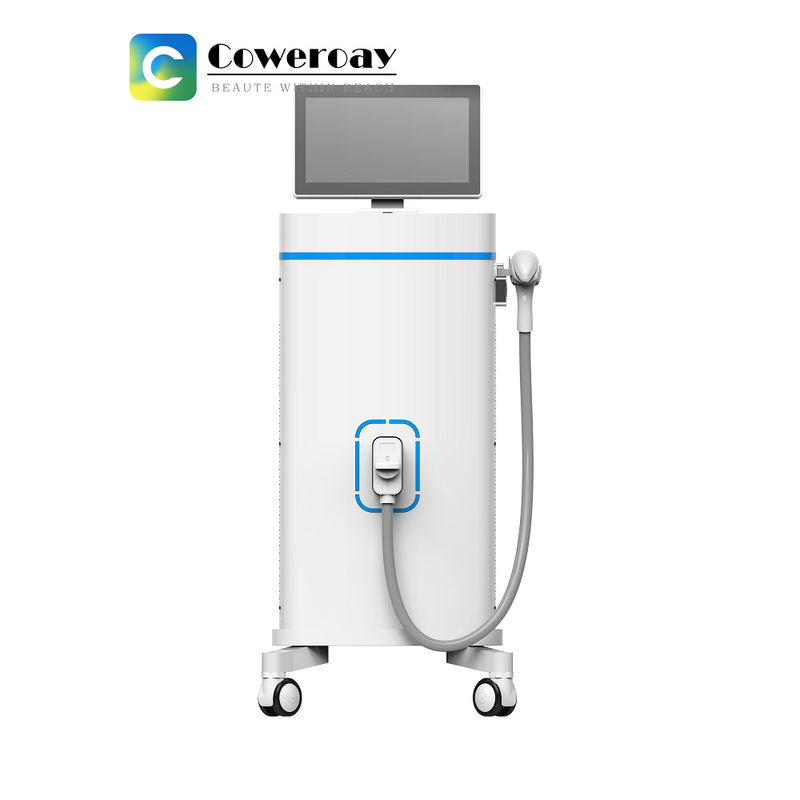

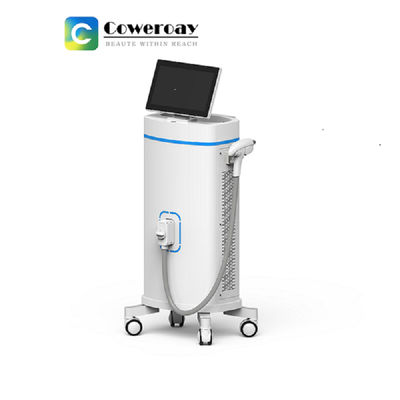

Real picture

Non Invasive 808nm Diode Laser Professional Laser Hair Removal Instrument 6
Non Invasive 808nm Diode Laser Professional Laser Hair Removal Instrument 7
Non Invasive 808nm Diode Laser Professional Laser Hair Removal Instrument 8Non Invasive 808nm Diode Laser Professional Laser Hair Removal Instrument 9
Non Invasive 808nm Diode Laser Professional Laser Hair Removal Instrument 10Non Invasive 808nm Diode Laser Professional Laser Hair Removal Instrument 11
